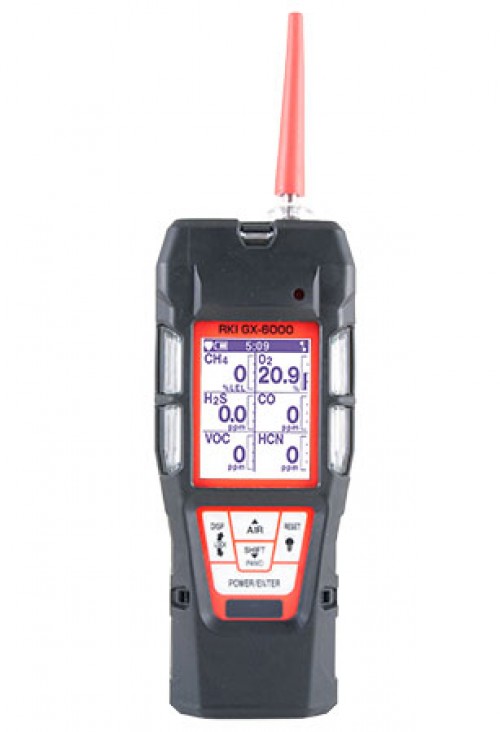

Simply put, the GX-6000 is a game changer. This powerful hand-held PID gas monitor is capable of simultaneously monitoring up to 6 gases.
The GX-6000 is equipped with a strong internal sample pump in addition to advanced safety features.
The GX-6000 can operate as a single gas PID unit or a multifunctional tool utilizing all 6 channels. Furthermore, the GX-6000 PID comes equipped with a library of over 600 VOC gases to choose from as standard. Choosing from the library is easy while personalized favorites can set for quick access.
The GX-6000 is a rugged personal PID gas monitor built for the nastiest environments. Most noteworthy, it is equipped with a removable impact-resistant rubber boot.
Equipped with a strong internal sample pump, a man-down alarm, a panic alarm, an LED flashlight, and large auto rotating LCD display, the GX-6000 can operate as a single gas PID unit or a multifunctional tool utilizing all 6 channels. The GX-6000 with a PID sensor will come equipped with a library of over 600 VOC gases to choose from as standard. Choosing from the library is easy with a personalized favorites list of 30 commonly used VOC’s as well as a list of 8 of the most recently used VOC’s. A benzene-specific version is available using a pre-filter tube for detecting low levels of benzene. The GX-6000 has a rugged design built for the nastiest environments. It is equipped with a removable impact-resistant rubber boot and a dust and water resistant enclosure with an IP-67 rating.
Gas |
Measuring Range |
Reading Increment |
Alarm Set Points |
Accuracy (Which ever is greater) |
|
PID Sensors |
|||||
10.6 Lamp | 600 VOC’s | 0 – 50,000 ppb | 1 ppb: (< 5000 ppb) 10 ppb (> 5,000 ppb) |
A1: 5,000 ppb | ± 10% of reading ± 1 digit |
A2: 10,000 ppb | |||||
0 – 6,000 ppm | 0.1 ppm(< 600 ppm) 1 ppm(> 600 ppm) |
A1: 400 ppm | |||
A2: 1,000 ppm | |||||
10.0 Lamp | Benzene Specific | 0.1 – 50 ppm | 0.01 ppm (0 ~ 10 ppm) 0.1 ppm (10 ~ 50 ppm) |
no alarms | |
300 VOC’s | 0 – 100 ppm | 0.01 ppm (0 ~ 10 ppm) 0.1 ppm (10 ~ 100 ppm) |
A1: 5 ppm A2: 10 ppm |
||
Catalytic |
|||||
Hydrocarbons (CH4, std) | 0 – 100% LEL | 1% LEL | A1: 10%LEL | ± 5% of reading or ± 2% LEL (*) |
|
A2: 50%LEL | |||||
Galvanic |
|||||
Oxygen (O2) | 0 – 40% Vol. | 0.1% Vol. | A1: 19.5 Vol. | ± 0.5% O2 | |
A2: 23.5 Vol. | |||||
Electro Chemical |
|||||
Carbon Monoxide (CO) | 0 – 500 ppm | 1 ppm | A1: 25 ppm | ± 5% of reading or ± 5 ppm | |
A2: 50 ppm | |||||
TWA 25 ppm | |||||
STEL 200 ppm | |||||
Hydrogen Sulfide (H2S) | 0 – 100 ppm | 0.5 ppm | A1: 5.0 ppm | ± 5% of reading or ± 2 ppm | |
A2: 30.0 ppm | |||||
TWA 1.0 ppm | |||||
STEL 5.0 ppm | |||||
Toxics (EC Sensors) |
|||||
Ammonia (NH3)* | 0 – 400 ppm | 0.5 ppm | A1: 25 ppm | ± 10% of reading or ± 5% of full scale (*) | |
A2: 50 ppm | |||||
Chlorine (Cl2)* | 0 – 10 ppm | 0.05 ppm | A1: 0.5 ppm | ||
A2: 1.0 ppm | |||||
Hydrogen Cyanide (HCN) | 0 – 15 ppm | 0.1 ppm | A1: 5 ppm | ||
A2: 10 ppm | |||||
Nitrogen Dioxide (NO2) | 0 – 20 ppm | 0.05 ppm | A1: 3 ppm | ||
A2: 6 ppm | |||||
Sulfur Dioxide (SO2) | 0 – 99.90 ppm | A1: 2 ppm | |||
A2: 5 ppm | |||||
IR Sensors |
|||||
Carbon Dioxide (CO2) | 0 – 10,000 ppm | 20 ppm | A1: 5,000 ppm | ± 5% of reading or ± 2% of full scale (*) | |
TWA 5,000 ppm | |||||
0 – 10.00% Vol. | 0.02% | A1: 0.50% Vol | |||
A2: 3.00% Vol | |||||
STEL 3.00% Vol | |||||
TWA 0.50% Vol | |||||
Methane (CH4)* | 0 – 100% LEL/ 0 – 100% Vol. |
1% LEL/ 0.5% Vol |
A1: 10% LEL A2: 50% LEL |
||
Hydrocarbons** | 0 – 100% LEL/ 0 – 30% Vol. |
Alarm Types | Gas alarm | Man-down | Trouble |
Low and high adjustable | 1st – self reset 2nd – latching |
Low flow Sensor connection Low battery Circuit error Calibration range |
|
Sample Method | Sample draw pump, flow rate 0.45 LPM, 50 foot sample range | ||
Display | Digital LCD, autobacklite, peak bar display, auto display rotation, and customize order of gases | ||
Audible Alarm | 95 dB at 1 ft. | ||
Languages | English, Spanish, French, German, Italian, Japanese, Korean, Portuguese, Russian | ||
Continuous Operation * | 14 hours on Lithium-ion battery pack. Complete recharge in 3 hours. 8 hours Alkaline battery pack (3 AA size within each pack) |
||
Operating Temp. & Humidity | -4°F to 122°F (-20°C ~ +50?), 0- 95% RH non condensing | ||
Dimensions / Weight | 2.6” W x 7.8” H x 2” D (H200 x W68 x D52 mm) 14 ounce (400g) (with lithium battery pack) |
||
Case Material | Dust and water resistant with IP-67 approval (exclude sample hose and probe) | ||
Safety Design / Approvals | Explosion proof: IECEx , ATEX , TIIS , CSA Explosion class :Ex ia IIC T4 Ga Others: CE Marking |
||
Standard Features | 2 Smart sensors slots auto recognize sensor changes Library of over 600 VOC’s User defined VOC list. Up to 30 frequently used Recent VOC list for last 8 selected gases Pump and circuit status indicators User & station ID selection menu Datalogging (interval, alarm trend, station and user ID) Snap logging – on demand data logging Demand zero / Auto zero BUMP and CAL expiration alarm Flashlight IrDA communication LEL sensor protection mode |
||
Standard Accessories | Rubber boot Belt clip Hand strap Tapered nozzle Probe with hydrphobic filter and 3’ teflon lined hose Benzene pre-filter tubes and holder (benzene versions) |
||
Optional Accessories | SDM-6000 calibration station Bundles with instrument carrying case and accessories Flexible probes Up to 50 foot sample hoses Filter set IrDA cable |
||
Warranty | Two years material (including sensors) and workmanship. One year for PID sensor (Two monthsfor 11.7 eV lamp) |
